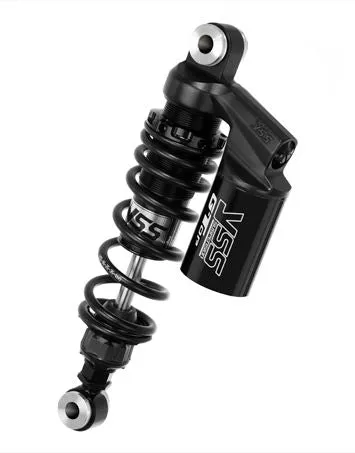

Harley Davidson XL1200 C SPORTSTER CUSTOM 2010-2016 Yss Shock absorber

Technical Info
COLLECTION:BLACK EDITION
YEAR:2009-2016
PRODUCT GROUP:Topline
SHOCK TYPE:REAR TWIN SHOCK
PRODUCT TYPE:Top External Reservoir Piggy Back Gas Shock
ABE:-
LENGTH:285-295 (MM.)
TOP:12.7×32 (MM.)
BOTTOM:12.7×32 (MM.)
SPRING:46-25-35-160 (MM.)
PISTON SIZE:36 (MM.)
SHAFT SIZE:12 (MM.)

COMPRESSION ADJUSTABLE

Adjustable Compression. Compression Adjuster is the controller for the compression stage of the shock absorbers and springs to move fast or slow. Adjustable step 30

THREAD SPRING PRELOAD

Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE

Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths /- 5 mm.
